Sensata | Gigavac · MX Series
Generated ConfigurationMX23
Military and heavy-duty silver-contact, hermetically sealed DC contactor family
SELECTIONS THAT BUILT THIS PART NUMBER
MX23
MX23 — Stand-up Mounting

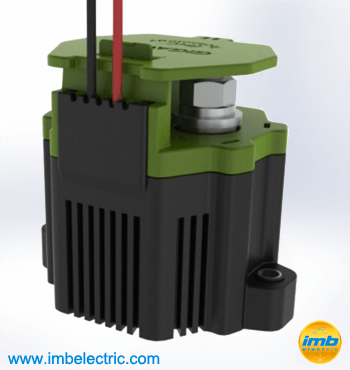

PRODUCT IMAGE
MX23
TECHNICAL DOCUMENTS
MX Series seriesMX Series Datasheet
Series datasheet (PDF)
3D STEP Model
STEP file on request
ABOUT MX SERIES
Series overview
The MX series is a hermetically sealed DC contactor family engineered to meet MIL-R-6106, purpose-built for military vehicles and heavy-duty applications. Silver-plated contacts provide high inrush surge capability; the ceramic-to-metal braze fully isolates the contact chamber from the environment.
GIGAVAC MX Series sealed DC Contactors are designed to meet MIL-R-6106 and are especially suited for military vehicles and heavy-duty applications. The hermetically sealed chamber shields the coil, contacts, and electronics from all outside environmental factors. The ceramic-to-metal weld provides a vibration-resistant, robust structure. Silver-plated contacts deliver low contact resistance and long life under high inrush conditions.
APPLICATION AREAS
5QUOTE FOR THIS MODEL
Get pricing & lead time for MX23
Quantity, lead time and application sign-off from our engineer within 1 business day. Same-day for standard models; feasibility report for custom configs.
This combination viewed 6 times
